Passing variables into modals

Prerequisites

Make sure you've created a Declarative Action.

Open the the Declarative Action

Navigate to the sys_declarative_action_assignment record of choice.

Open the Payload Definition

Open the sys_declarative_action_payload_definition record that is referenced on the client_action field.

Define the payload structure

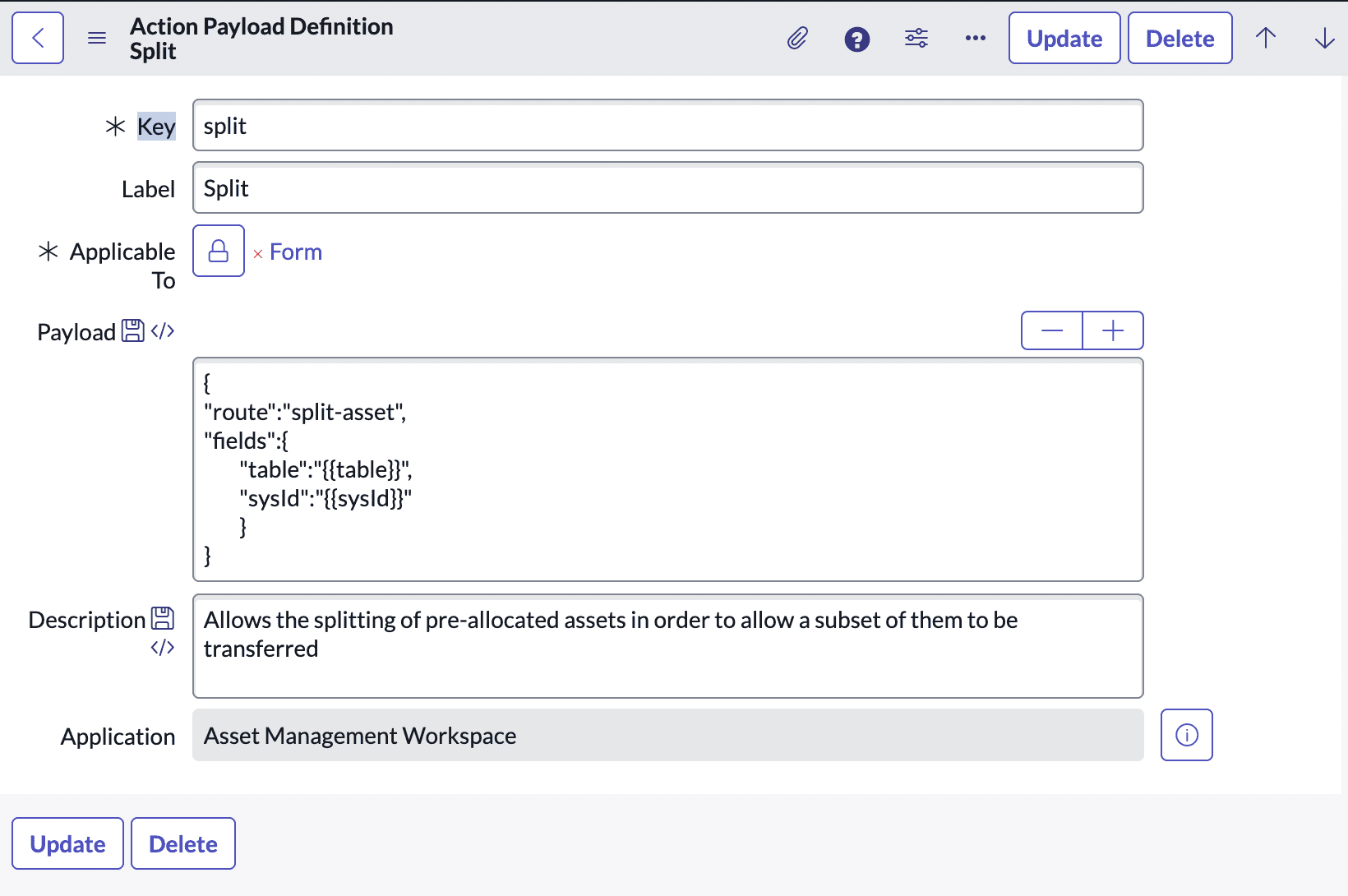

On the sys_declarative_action_payload_definition record page you will see the payload_template field which is either empty or has a basic JSON object defined there. This object should contain the route of the UIB Page you want to open in the modal. It can also contain a fields key to specify required parameters to pass into the modal and a params key to specify optional parameters. After settling on your payload structure, you can save the Payload Definition record.

{
    "route": "route-of-your-uib-page",
    "fields": {
        "someRequiredParameter": "{{requiredParameter}}"
    },
    "params": {
        "someOptionalParameter": "{{optionalParameter}}"
    }
}

Open the advanced view of the Declarative Action

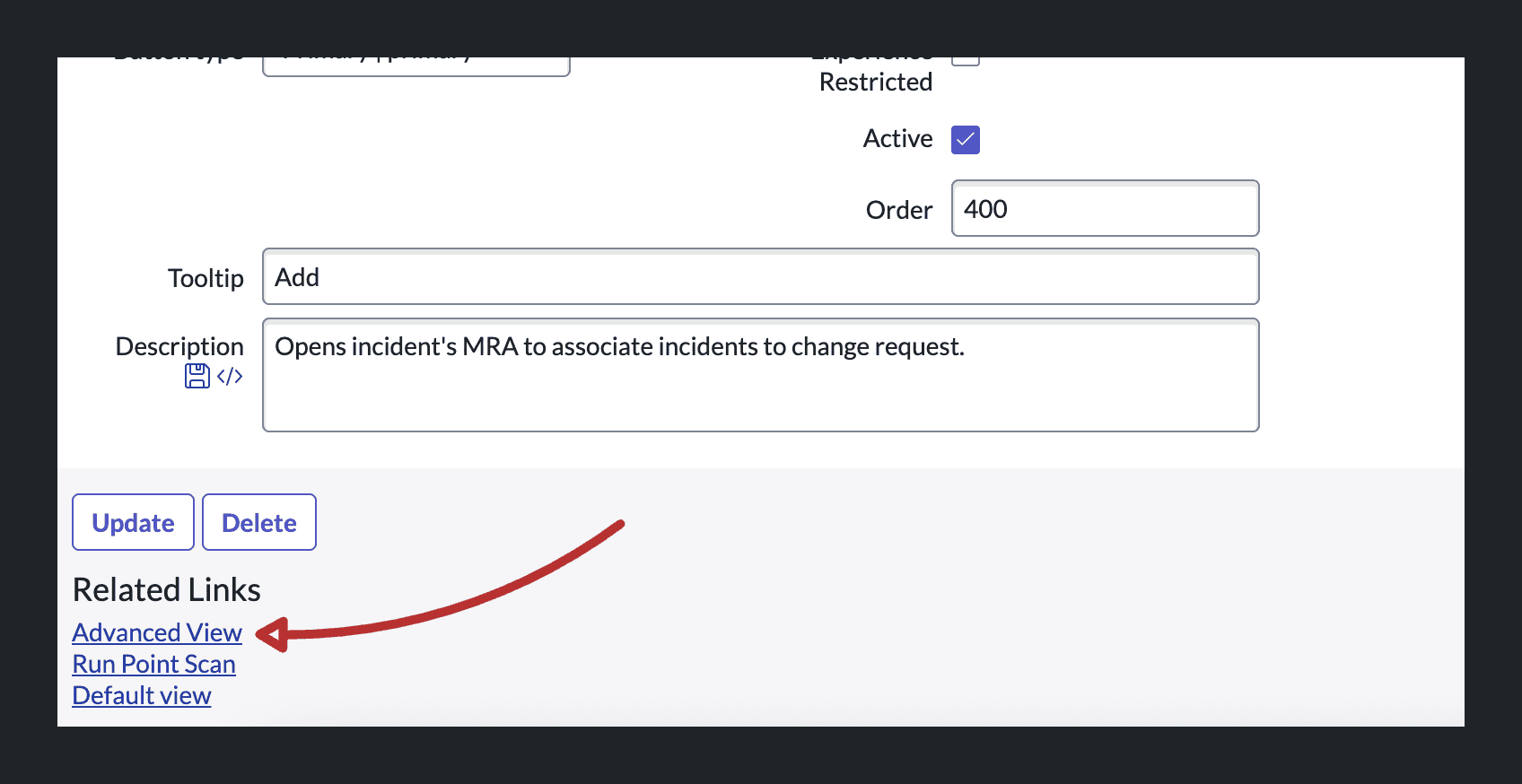

Back on the Declarative Action (sys_declarative_action_assignment) record, click on the Related Link Advanced View to open the advanced view of the record.

Mapping values

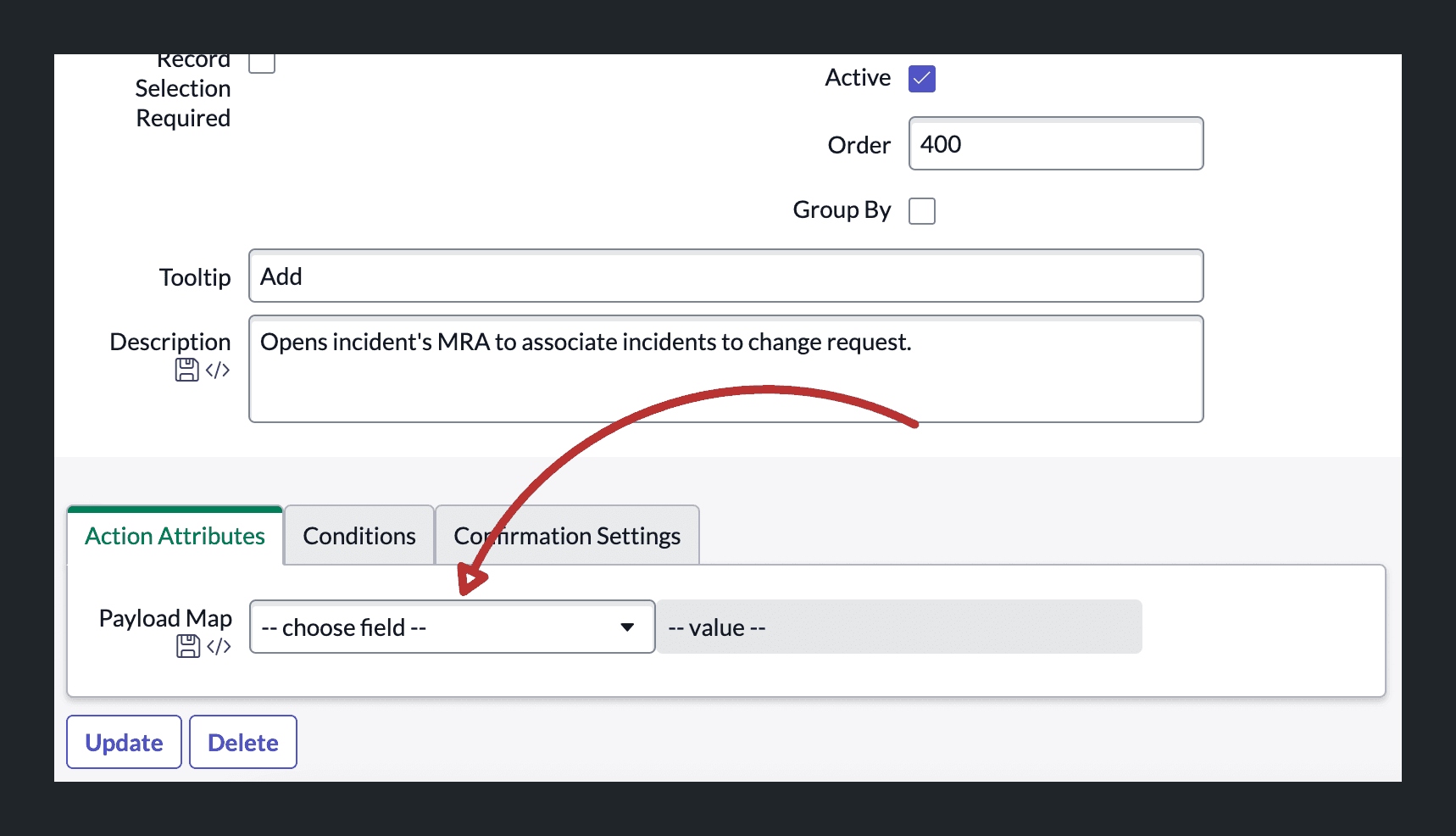

In the advanced view there should be a Section Tab called Action Attributes with one field called Payload Map. You should now be able to select the parameters that you defined in the sys_declarative_action_payload_definition record.

Referencing dynamic values

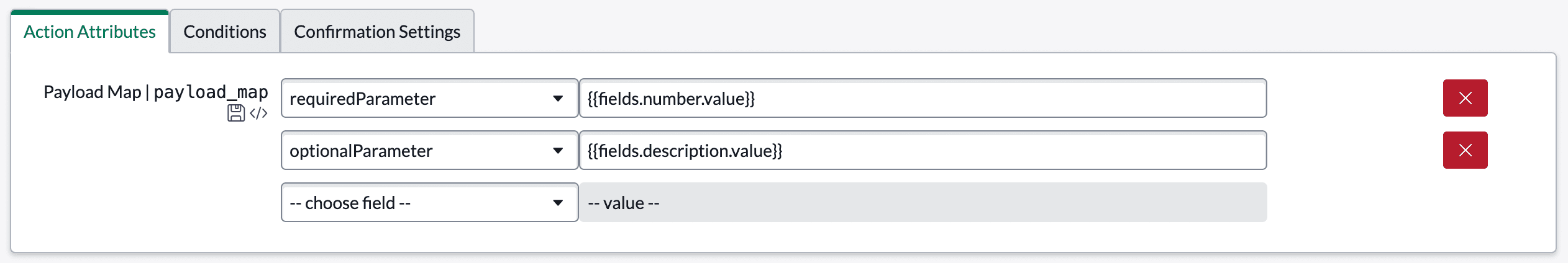

Now we can select the parameters and tell the system what values we want to map onto them. To reference fields on the current record you need to use curly brace syntax while referencing the fields object, on which a key exists for each field of the record. Finally we need to reference the value key for that field.

Adding parameters to your UIB Page

Make sure you add whatever variables you're passing to the modal as parameters to the UI Builder Page that you're using to render inside the modal.

This can be done simply by defining the required and optional parameters of the UIB Page.
